Objemovací stroje - DST 60/DST 90/DST 90 FB

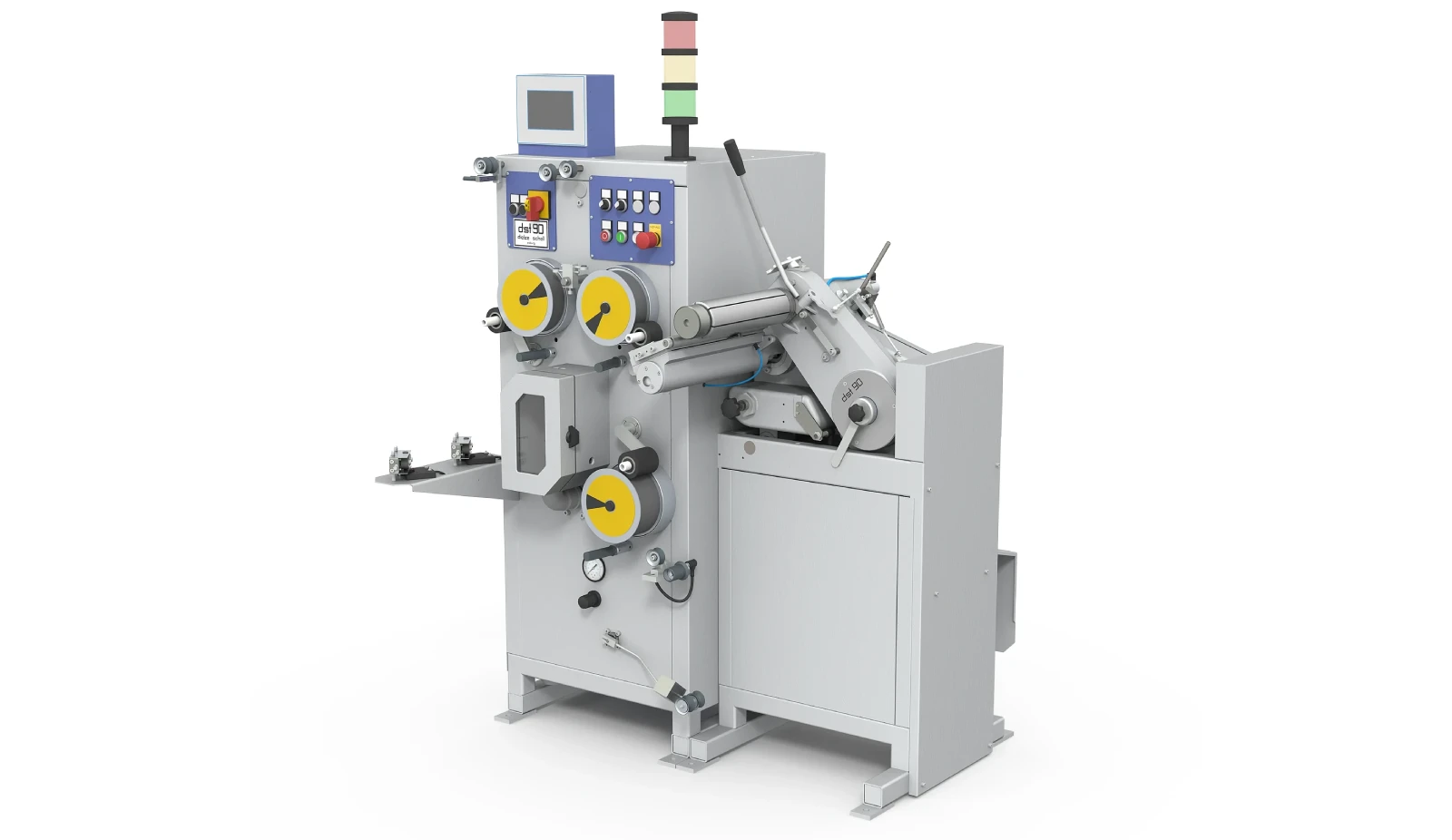

DST-60 air texturizing machine

The group of texturizing machines is used for air texturizing glass fibre or a mixture of fibres (glass / Kevlar) in yarns up to a maximum tex of 9600. The material to be texturized is gradually wound on a drum by means of a winding machine.

Basic equipment:

The control touch panel and simple graphic control. Control of the current production process or the status of the entire line.
Possibility to create up to 99 different winding parameters using recipes.
Very easy and quick setup of the whole machine.
Direct control of all galettes.
Sealed texturizing box with replaceable nozzle to achieve the desired bulking.
Dancer control for constant fibre tension and winding speed.
Towing device for up to 4 windings.

Technical data



DST 60

DST 90

DST 90 FB

Winding width [mm]

250

500

500

Maximum winding diameter[mm]

300

400

400

Production speed[m/min]

až do 600

až do 600

až do 600

Tex range[tex]

68 – 5 000

68 – 10 000

glass fibre ribbon

Nozzle

As required

As required

As required

Optional equipment

Fancy godets
Pressure roller on godets
Fibre break detection
Fibre feeder
Roller or disc brakes
Overspray

Fancy godets
Pressure roller on godets
Fibre break detection
Fibre feeder
Roller or disc brakes
Overspray

Fancy godets
Pressure roller on godets
Fibre break detection
Fibre feeder
Roller or disc brakes
Overspray
