Air texturizing machines – DST – 60/DST – 90/DST – 90 FB

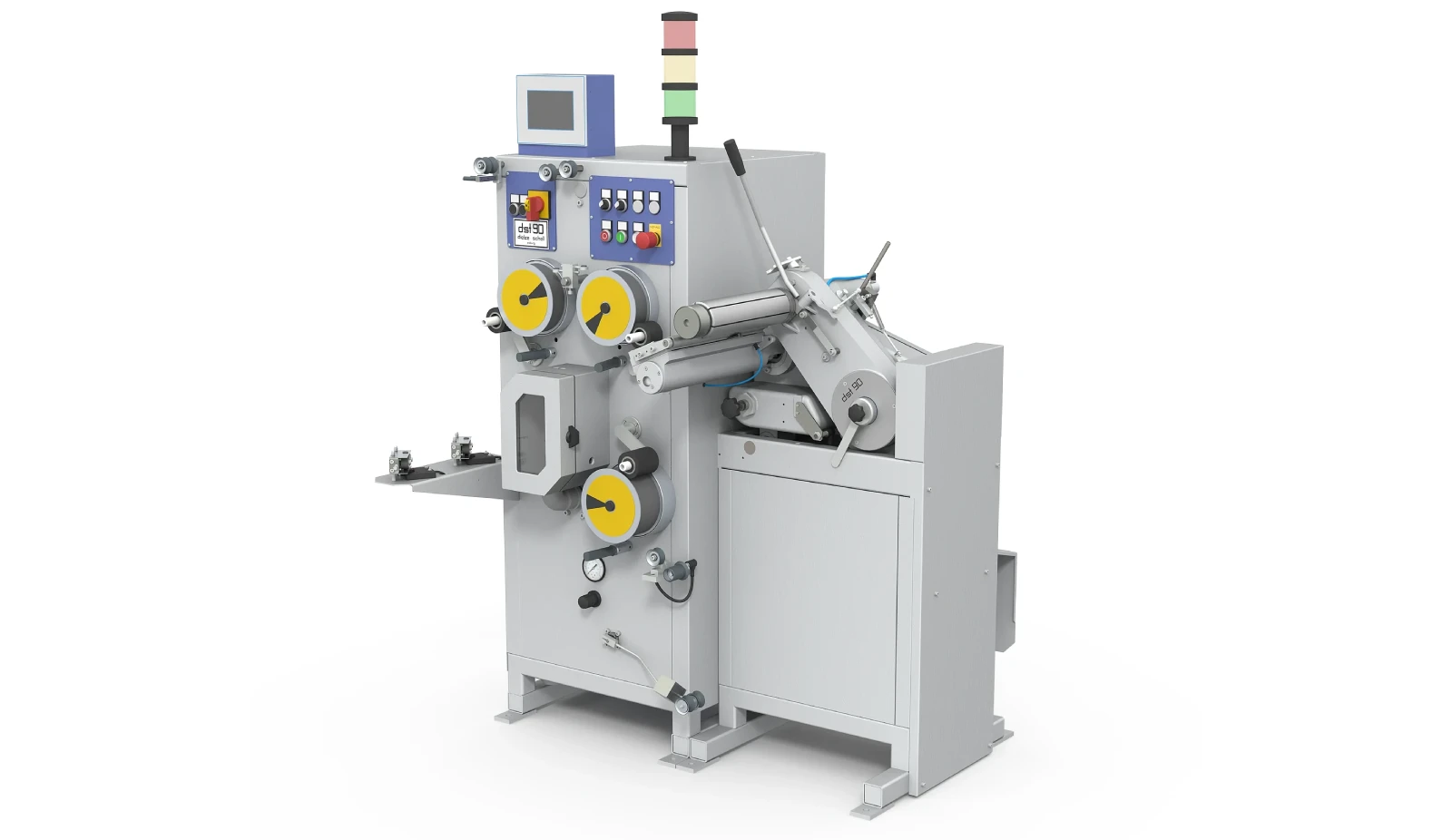

DST-60 air texturizing machine
The group of texturizing machines is used for air texturizing glass fibre or a mixture of fibres (glass / Kevlar) in yarns up to a maximum tex of 9600. The material to be texturized is gradually wound on a drum by means of a winding machine.
Basic equipment:
The control touch panel and simple graphic control. Control of the current production process or the status of the entire line.
Possibility to create up to 99 different winding parameters using recipes.
Very easy and quick setup of the whole machine.
Direct control of all galettes.
Sealed texturizing box with replaceable nozzle to achieve the desired bulking.
Dancer control for constant fibre tension and winding speed.
Towing device for up to 4 windings.
| Model | DST 60 | DST 90 | DST 90 FB |
|---|---|---|---|
| Winding width [mm] | 250 | 500 | 500 |
Maximum winding diameter[mm] |
300 | 400 | 400 |
Production speed[m/min] |
up to 600 | ||
Tex range[tex] |
68 – 5 000 | 68 – 10 000 | glass fibre ribbon |
Nozzle |
As required |
||
Optional equipment |
Fancy godets Pressure roller on godets Fibre break detection Fibre feeder Roller or disc brakes Overspray |
Fancy godets Pressure roller on godets Fibre break detection Fibre feeder Roller or disc brakes |
Fancy godets Pressure roller on godets Fibre break detection Fibre feeder Roller or disc brakes |
